Target Applications

Commercial Office Workstations

Industrial Automation Systems

Digital Signage & Advertising Displays

Edge Computing Solutions

Smart Retail & POS Systems

Conference Room Computing

Embedded Industrial Projects

OEM Mini PC Brand Customization

Enterprise Bulk Deployment Projects

Core Features

12th Gen Intel Core i5-1235U Performance:
Built with Intel’s efficient hybrid architecture, delivering strong multitasking capability and low power consumption for commercial computing applications

DDR5 High-Speed Memory Support:
Dual DDR5 DIMM slots support up to 64GB RAM, improving system responsiveness and workflow efficiency for demanding business tasks

Dual 4K Display Output:
Supports HDMI 2.0 and DisplayPort with up to 4096×2304 @60Hz resolution, ideal for digital signage, office workstations and multi-screen environments

Thunderbolt 4 Full-Function Type-C:
Enables ultra-fast data transfer, video output and peripheral expansion through a single Type-C connection

Flexible Storage Expansion:
Supports both SATA and NVMe SSD storage solutions, providing scalable storage configurations for different deployment needs

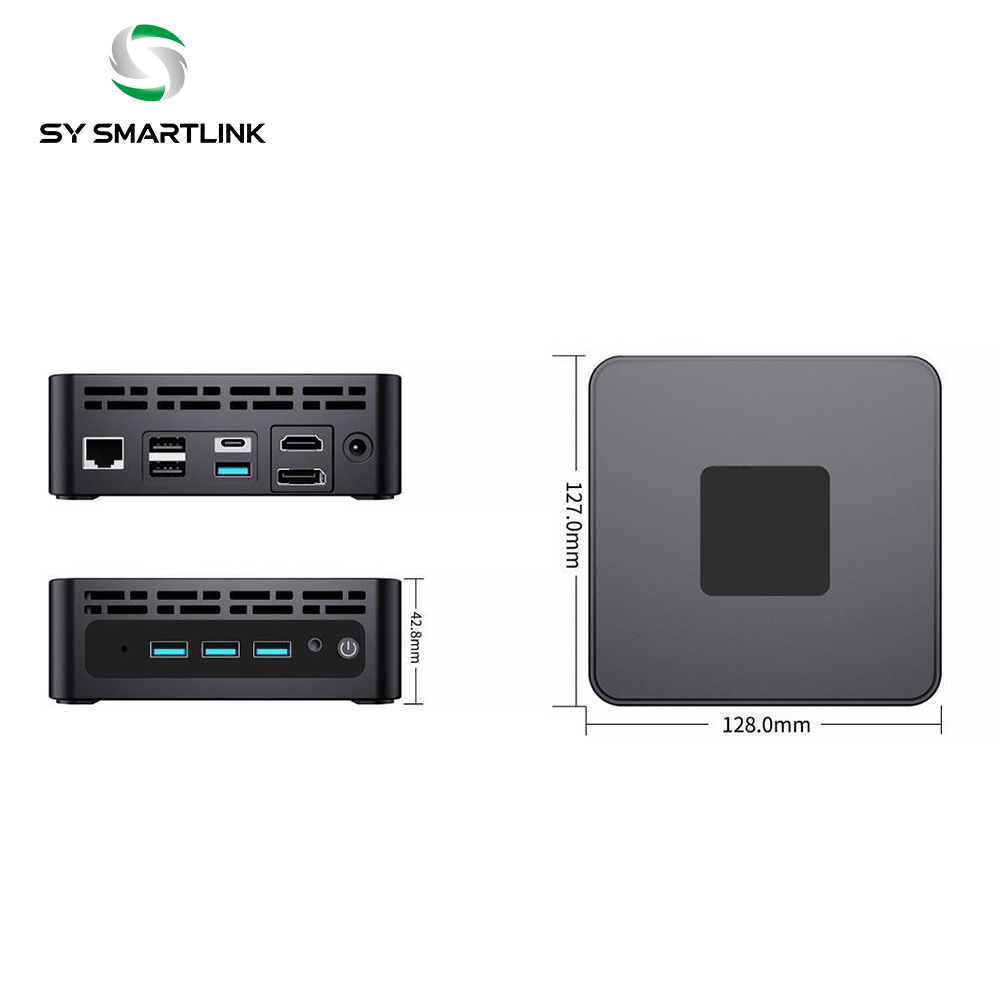

Compact Space-Saving Design:

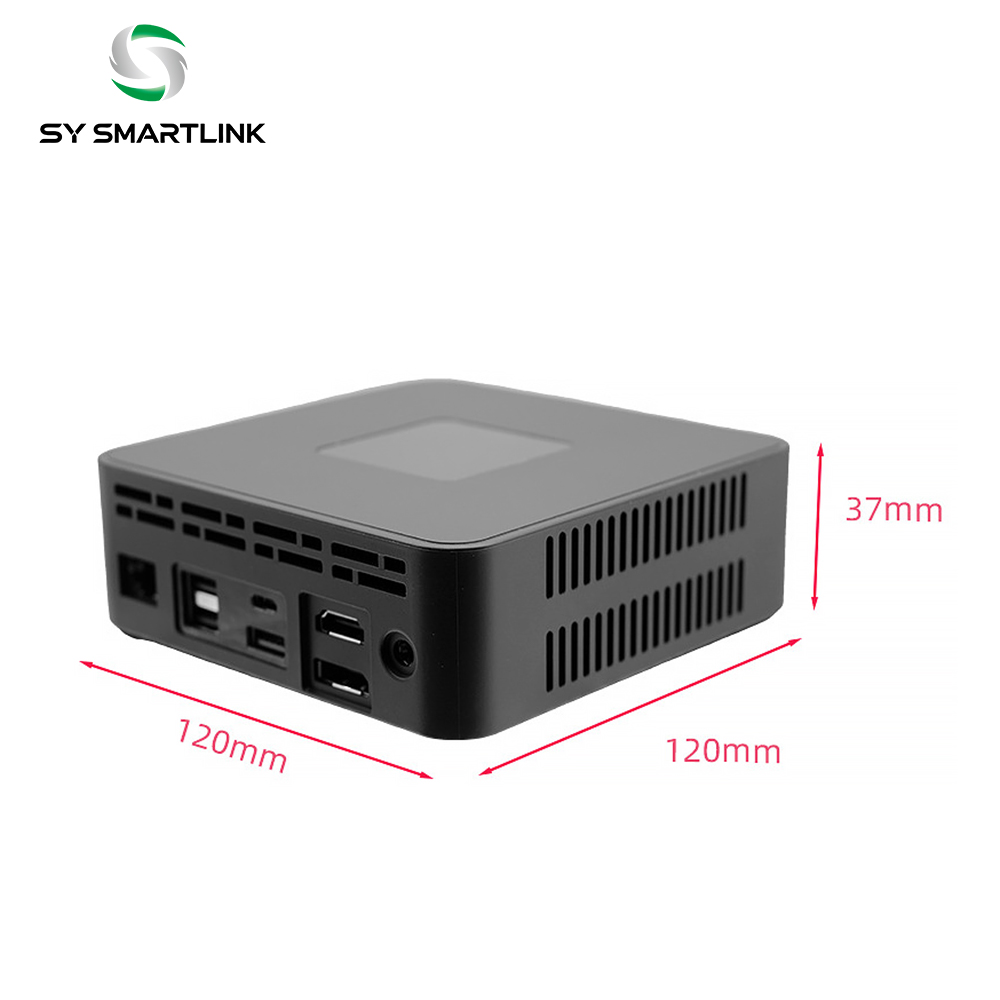

120×120×37mm ultra-compact chassis reduces installation space requirements and lowers shipping and deployment costs

Industrial-Grade Stability:
Supports operating temperatures from -20°C to 60°C, suitable for continuous operation in industrial and commercial environments

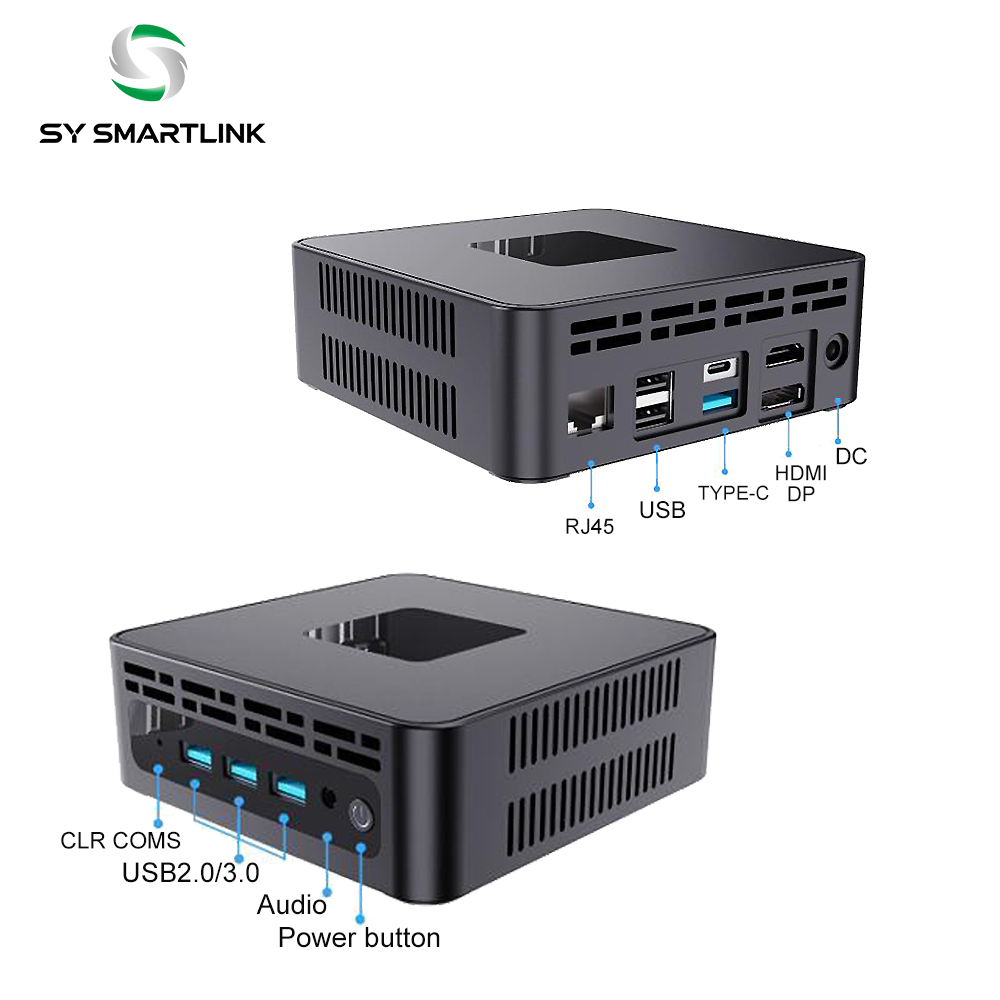

Rich Connectivity Options:
Equipped with USB 3.2, USB 2.0, LAN, NGFF WiFi expansion and multiple internal interfaces for flexible system integration

Product specs

Model: SYMN07 mini pc

Motherboard Size: 120mm120mm37mm

CPU: Intel Core i5-1235U

GPU: Intel UHD Graphics

Power Supply: 1*DC_IN

Memory: 2*DIMM Slots, DDR5, max support: 64GB

Network Function: 1*LAN Port

Display Function:

DP Port, 4096 * 2304 @ 60Hz

1*HDMI 2.0 Port, 4096 * 2304 @ 60Hz

1*TYPE-C, Thunderbolt 4

USB Function：

4*USB3.2 Ports

2*USB2.0 Ports

Audio Function：

Integrated Realtek ALC897 HD digital audio decoder

1*F_AUDIO

Storage Function：

1*SATA Port

1*NVMe 2 Port

1*HD_PWRI Pin Header

Switch Function：

1*PWR

1*CMOS

Other I/O：

1*NGFF_WIFI Port

2*FAN

Operating Environment: Operating Temperature -20°C ~ 60°C

BIOS: AMI BIOS

Operating System: Windows 10, Windows 11

OEM/ODM Custom Service

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily. We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

  Ready to customize your next bestseller? Click here to contact us.....
