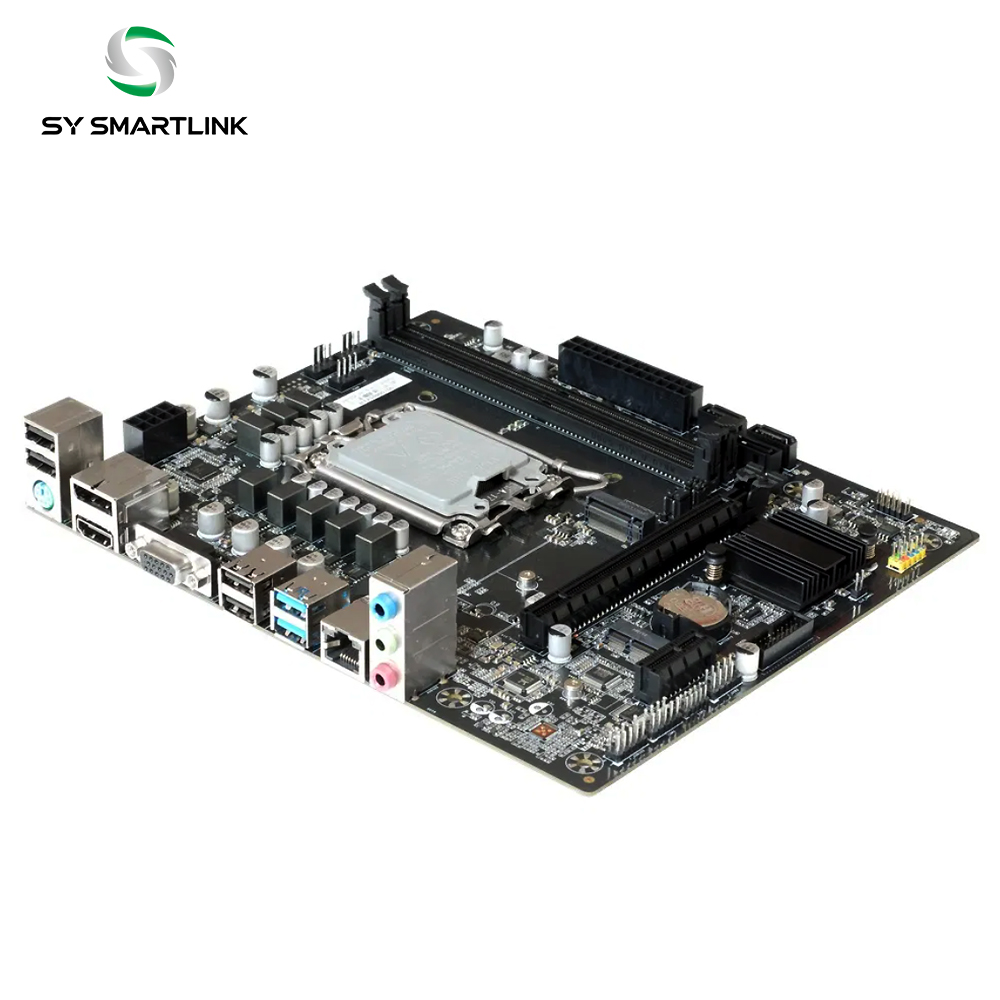

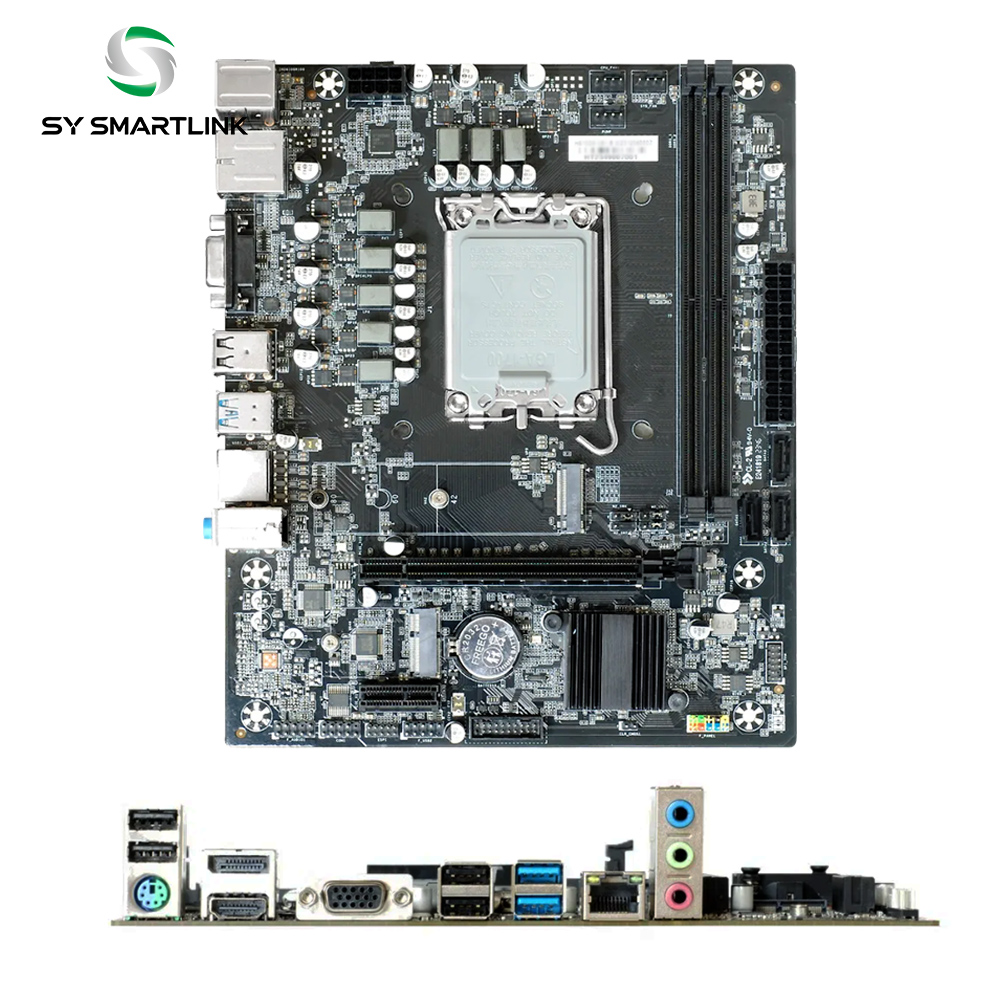

Intel Core LGA1700 DDR5 H610 Chipset 12th/13th/14th Gen ATX Computer Motherboard

20 Years Of Computer Hardware Manufacturing, Build Your Brand Easily.

Supports SOCKET LGA1700 12th/13th/14th Gen Intel, H610 Chipset

CPU: Intel & AMD.

Supports ATX / Micro ATX / ITX Motherboard.

Gaming / Commercial / Home / Office use PC Motherboard.

Scroll for more details ↓

Features

Product Description

Specification	H610DA V8.1
CPU	Supports SOCKET LGA1700 12th/13th/14th Gen Intel
CPU	Core i3/i5/i7/i9/Pentium/Celeron series processors
Chipset	Intel H610 Chipset
Memory	2*DDR5
Memory	UDIMM slot 4800MHz/5200MHz, up to 96GB
Display	1* VGA port / 1* DP port / 1* HDMI port
Storage	3SATA3.0 port 6Gb/s
Storage	1*M.2_SSD support 2242/2280 PCIe X4/SATA signal
Network	1* RTL8111H 10/100/1000Mbps Ethernet
Network	support Wake On LAN
Audio	1* Realtek ALC897 high fidelity audio controller
Audio	optional CX20632 high fidelity audio controller
Expansion Slots	1* PCI Express X16 Gen 4 slot
	1* PCI Express X1 Gen 3 slot
	1*M.2_WIFI support CNVI 2230
Rear I/O	4*USB2.0 port
	1*PS/2 port
	1*DP port(optional)
	1*VGA port
	2*USB3.2 Gen2x1 port
	1*HDMI port
	1*Audio_ Jack (Line-in/Line-out/Mic-in)
	1*RJ45 port
Front I/O	1*ATX_24P power port
	1*ATX_8P power port
	1*CPU_FAN connector
	1*SYS_FAN connector
	1*PUMP_FAN connector
	1*F_PANEL connector
	1*F_AUDIO connector
	1*COM connecto
	1*ESPI connector
	1*F_USB3.0 connector
	2*USB3.0 port
	1*F_USB2.0 connector
	2*USB2.0 port
	1*CLR_CMOS connector
	1*M.2 switch connector
	1*TPM connector
Support System	Windows 11, Windows 10
BIOS	UEFI AMI BIOS
PCB size	Micro-ATX (220mm x 180mm)

OEM/ODM Custom Service

Shenzhen Sy Smartlink Technology Co., Ltd is a high-tech enterprise integrating R&D, manufacturing, and sales of computer hardware products

One-stop full custom service from design to mass production, build your brand easily

Full Customization Solution For Your Brand

We provide OEM, ODM, CKD, SKD, and fully customized solutions across hardware functionality, motherboard structure, industrial design, software, packaging, and branding. No matter you are a start-up brand or a mature enterprise, we can meet your custom needs.

Hardware Customization
Motherboard circuit design, structure customization, interface customization.
Industrial Design
Shell appearance design, mold opening, material selection, color matching, logo customization.
Software Customization
System pre-installation, boot logo customization, software pre-installation, function customization.
Packaging & Branding

Custom packaging box, user manual, brand labeling, certification support, full brand service.

Our Custom Process

① ➟ ② ➟ ③ ➟ ④ ➟ ⑤ ➟ ⑥

Demand Communication

Scheme Design

Sample Making

Sample Testing

Mass Production

Delivery & Service

Understand your custom needs

and product requirements

Provide custom solution

and quotation for you

Produce prototype

sample for your confirmation

Test and adjust the

sample according to your feedback

Formal mass productionafter

sample confirmation

On-time delivery and after-sales

technical support
